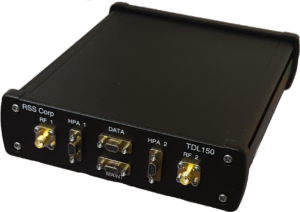

| The TDL150 Tactical Data Link is a high data rate networked for modern Internet Protocol (IP) communications. It can support up to 32 simultaneous terminals on the same network providing high throughput for all radios. High data rate transfers in both directions and supports on-the-fly network setup.
The TDL150 waveform provides unmatched network efficiency with multiple simultaneous radios. Radio network utilization does not degrade as more nodes are added to the network. UDP Throughput exceeds 37 Mbps in a single 20 MHz non-MIMO channel! |
TDL 150 |
| Utilizing advanced OFDM technologies the TDL150 provides transmit link rates of 43 Mbps. Multiple RF ports allows the ability to operate in two port diversity modes and with Space Time Block Coding (STBC). The system can operate in 5, 10 or 20 MHz.
Compatible with TDL300. |
| Interfaces | RF |
|---|---|
| Data: Ethernet 10/100/1000 Control: HTTPS, SNMPv2c, SNMPv3 |
Frequencies: S-Band, C-Band Power: Up to 20 Watts w/ HPA at 43 Mbps Link Rates: Adaptive 6 to 43 Mbps Channel Widths: 5, 10 or 20 MHz |
| Physical | Security |
| Weight: 2.5 lbs. Size (W x H x D): 4.5 in x 1.7 in x 7 in Power (in): 9 – 36 VDC (15 Watts) Operating Temp. -40 C to +55 C |
AES-128/256 Encryption |
